Competitor walksheds

A coffee shop wants to understand the competition inside its own catchment. Its walkshed is every residential block that can walk to it in 10 minutes. This tutorial asks, block by block, how many other cafes those residents can also reach on foot, and which one is closest. The example city is Providence, Rhode Island.

Running this tutorial uses about 450 tokens.

Set up

Read the cafe category id from the free catalog and find the city.

from closecity import Client, close_map

close = Client("ck_live_your_key")   # use your own key here

amenity_types = close.destination_types()
ids = dict(zip(amenity_types["label"], amenity_types["dest_type_id"]))
cafe = ids["cafes"]

city = close.places(q = "Providence").iloc[0]
city_boundary = close.place_boundary(geoid = city["geoid"])

Find the shops and our walkshed

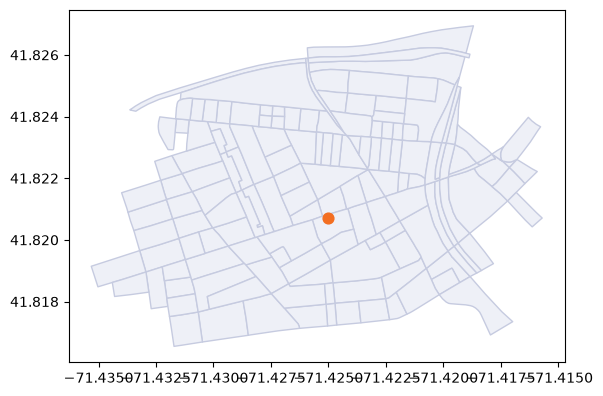

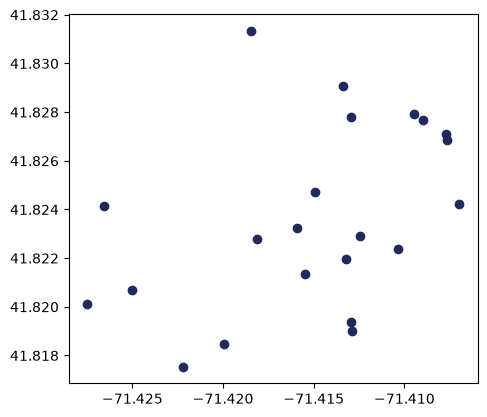

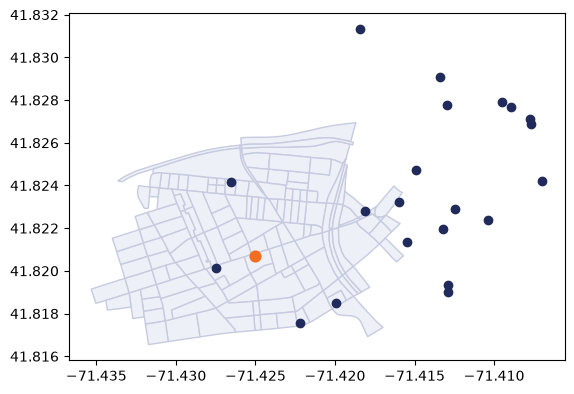

place_pois returns every cafe within the city’s boundary. Pick one as the subject, then pull its walkshed: every block that can walk to it in 10 minutes. Draw the walkshed with the cafes on top, our shop in orange.

cafes = close.place_pois(geoid = city["geoid"], type = cafe)
ours = cafes.iloc[0]
print(ours["name"])

our_shed = close.poi_catchment(dest_id = int(ours["dest_id"]), mode = "walk",
                               max_minutes = 10)
close_map(
    cafes,
    color = ["#f36e21" if d == ours["dest_id"] else "#202a5b" for d in cafes["dest_id"]],
    label = "name",
    background = our_shed.dissolve(),
    background_color = "#74b9ff",
    boundary = city_boundary,
)

Little Sister

What each block can reach

Now split the walkshed by block. A single block_pois call takes the whole list of walkshed blocks and returns, for every block, each cafe its residents can walk to within 10 minutes: the real routed answer, not a straight-line guess, and one request rather than one per block. Passing a list of GEOIDs tags every row with its origin geoid, so grouping by it reads two things per block: how many cafes are in reach, and which one is closest by walk time.

reach = close.block_pois(
    list(our_shed["geoid"]),
    mode = "walk", type = cafe, max_minutes = 10, output = "tabular",
)

per_block = reach.groupby("geoid")
our_shed["n_cafes"] = (
    our_shed["geoid"].map(per_block.size()).fillna(0).astype(int)
)
winners = reach.loc[per_block["travel_time"].idxmin()].set_index("geoid")
our_shed["closest_cafe"] = our_shed["geoid"].map(winners["dest_id"])

How many cafes each block can reach

Shade every block in the walkshed by the number of cafes within a 10-minute walk; blue marks the blocks with the most choice, and the cafes those blocks can reach are drawn on top as points.

reachable = cafes[cafes["dest_id"].isin(reach["dest_id"].unique())]
close_map(
    our_shed,
    fill = "n_cafes",
    reverse = True,
    points = reachable,
    boundary = city_boundary,
)

Which cafe is closest

Give each cafe that wins at least one block a colour, then paint every block with the colour of its closest cafe. The cafe points share those colours. The result is the contested ground: where our shop’s catchment gives way to a competitor’s.

closest = [int(c) for c in our_shed["closest_cafe"].dropna().unique()]
colors = pc.qualitative.Bold
palette = {cid: colors[i % len(colors)] for i, cid in enumerate(closest)}

block_color = [palette[int(c)] if not np.isnan(c) else "#dddddd"
               for c in our_shed["closest_cafe"]]
winning = cafes[cafes["dest_id"].isin(closest)]

close_map(
    our_shed,
    color = block_color,
    points = winning,
    points_color = [palette[int(d)] for d in winning["dest_id"]],
    boundary = city_boundary,
)

The same recipe scales up: raise max_minutes, or compare whole cities by pulling each one’s cafes with place_pois.
